ERW273 Tube mil/oipe mil/welded pipe production/pipe making machine is used to Produce steel pines of 114mm~273mm in OD and 2.0mm~10.0mm in wall thickness, as well as  corresponding round tube, square tube and special-shaped tube.

Application: Gl, Construction, Automotive, General Mechanical tubing, Furniture, Agriculture, Chemistry, 0il, Gas, Conduit, Contructur

Product

ERW273mm  Tube  Mill

Applicable Material

HR/CR,Low Carbon Steel Strip Coil,Q235,S2 35,Gi Strips.

ab≤550Mpa,as≤235MPa

Pipe cutting Length

3.0~12.0m

Length Tolerance

±1.0mm

Surface

With Zinc Coating or without

Speed

Max.Speed:≤40m/min

(can customized according to customer's re quirements)

Others

All the pipe is high frequency welded

Both inner and outer welded stab has been

removed

Material of roller

Cr12 or GN

Squeeze roll

H13

Scope of welded pipe equipm ent

Hydraulic double-Mandrel un-coiler

Hydraulic  Shear&Automatic  Welding Horizontal  Accumulator

Forming&Sizing   Machine

Electric Control System

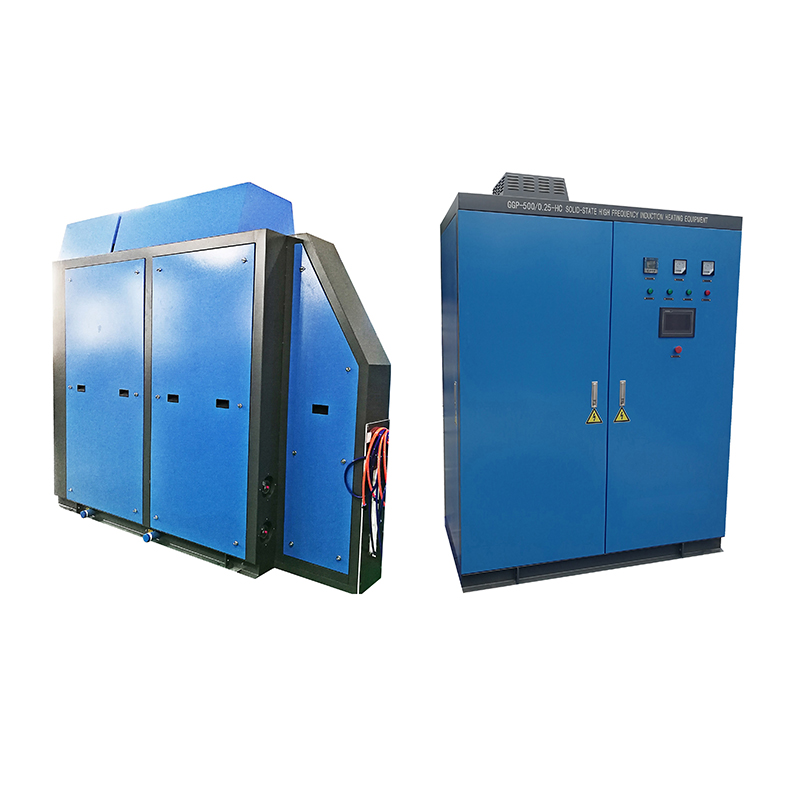

Solid State H.F.Welder (AC or DC Driver) Computer Flying Saw/Cold Cutting Saw

Run Out table

All auxiliary equipment and accessories, such as uncoiler, motor, bearing, cut ting saw, roller, hf,etc., All are top brands. The quality can be guaranteed.
